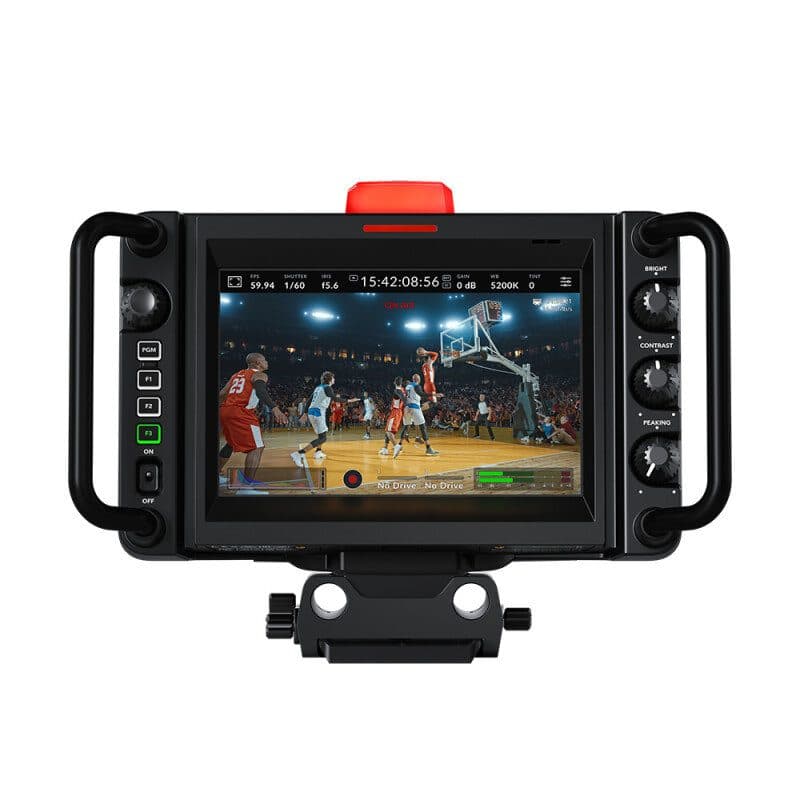

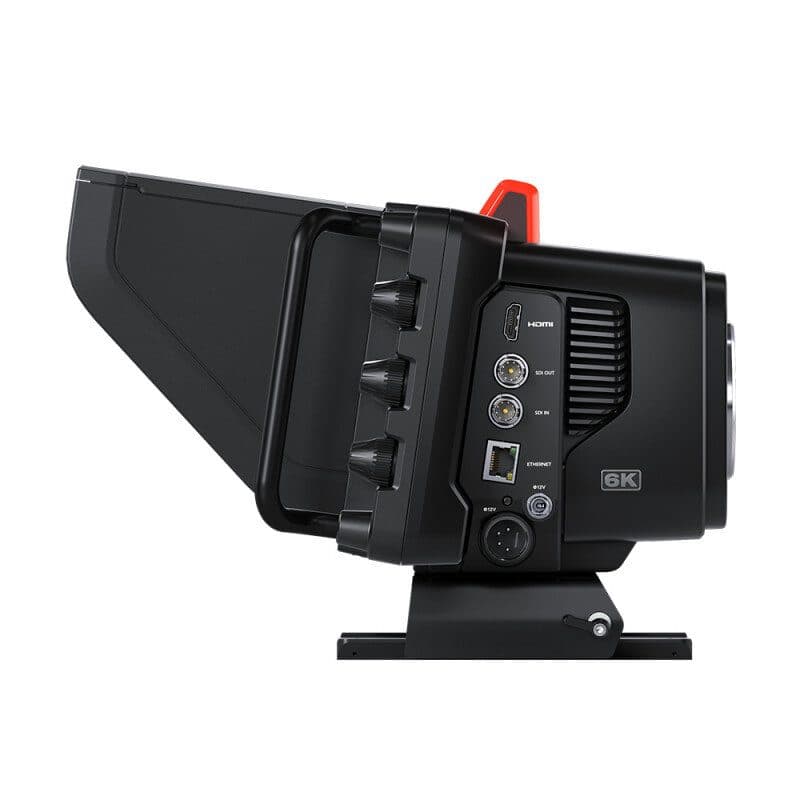

Telecamera da studio con sensore Super 35 6K e attacco Canon EF, filtri ND interni e streaming integrato. Connessioni 12G-SDI, HDMI e Ethernet 10G per inviare tutti i segnali in un unico cavo in workflow SMPTE.
2603,08 €IVA inclusa
Progettata per essere la telecamera da studio definitiva, Blackmagic Studio Camera 6K Pro offre un sensore Super 35 6K più grande e un attacco obiettivo Canon EF per autentiche immagini cinematografiche nelle produzioni dal vivo. Dispone di filtri ND interni per ridurre la quantità di luce che entra nella camera e consente di lavorare in qualsiasi circostanza, persino sotto l’intensa luce del sole. Lo streaming è integrato, offre connessioni 12G-SDI e HDMI e grazie al 10G Ethernet invia tutti i segnali in un solo cavo, per un workflow in stile SMPTE nettamente più economico.
| Ethernet | 10Gb/s |
|---|---|
| Blackmagic RAW Constant Bitrate 3 | 1 |
| Dual native ISO | 0 dB and 18 dB gain |
| Focus | autofocus available using compatible lenses |
| External control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI, RTMP and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or A |
| Computer interface | 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A |
| SDI rates | 1.5G, 3G, 6G, 12G |
| HDMI 2.0 video outputs | 1 |
| Analog audio output | 1 x 5-pin XLR for talkback headset. 1 x 3.5 mm TRRS mini-jack for headphones with MIC |
| Built in speaker | 1 x mono speaker |
| SDI compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| Effective sensor size | 23.10 x 12.99 mm (Super 35) |
| Lens mount | active Canon EF mount |
| Lens control | iris, focus, zoom on supported lenses |
| Dynamic range | 13 stops |
| Frame rates | project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions |
| Built in ND filters | four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters |
| Screen dimensions | 7" 1920 x 1200 |
| Screen type | LCD capacitive touchscreen |
| Controls | touch screen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials |
| Reference inputs | Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter |
| Remote control | remote camera control over SDI, HDMI or Ethernet |
| Microphone | integrated stereo microphone |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
| Media format | can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems |
| Storage type | 2 x USB‑C 3.1 Gen 1 expansion ports for external media |
| Storage rates | storage rates based on 30 frames per second |
| Recording formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate |
| Media | 2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW |
| Screen brightness | 2000 nits |
| HD video standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Sensitivity at 0 dB gain | f11 with 2160p 59.94, f12 with 2160p 50 at 2000 lux with 89.9% reflectance |
| SD video standards | none |
| Signal to noise ratio | 64.62 dB for 2160p Ultra HD scaled from 5.3K |
| SDI video inputs | 1 |
| SDI video outputs | 1 |
| Analog audio input | 2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5 mm Stereo Input. Can also be used for Time Code input |
| SDI audio output | 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 |
| Direct streaming | Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C |
