Switcher video 4 M/E con 40 ingressi 3G-SDI e 24 uscite 3G-SDI. Include 4 DVE, 16 keyer ATEM avanzati, 4 multiview e 2 SuperSource per un totale di 12 DVE.
4290,60 €IVA inclusa

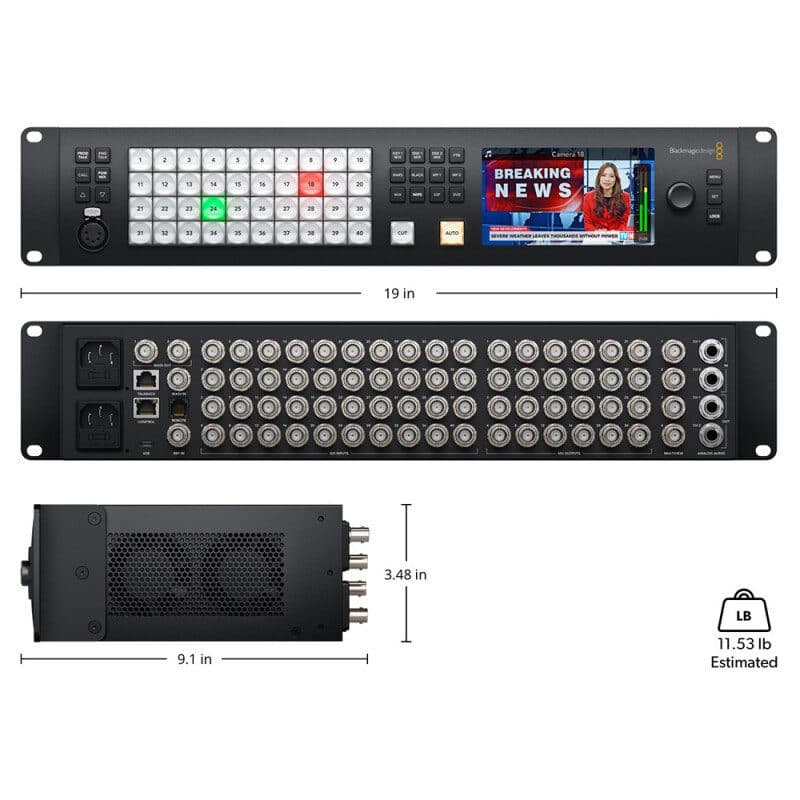

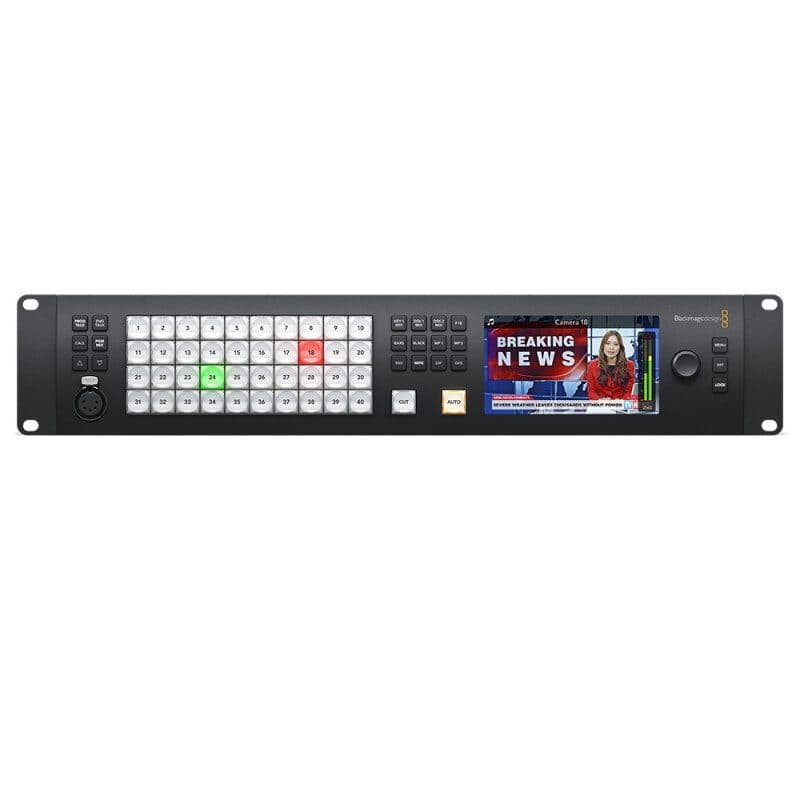

ATEM 4 M/E Constellation HD è uno switcher video di grandi dimensioni con il doppio delle funzioni del modello 2 M/E. Offre 40 ingressi 3G-SDI, 24 uscite 3G-SDI, 4 DVE, 16 keyer ATEM avanzati, 4 multiview e 2 SuperSource per un totale di 12 DVE.
| Talkback | RJ45 for 3rd party talkback systems |
|---|---|
| SuperSource | 2 |
| Computer interface | 1 x USB-C port |
| SDI rates | 1.5G, 3G |
| SDI compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12 |
| SDI auto switching | automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI |
| Video sampling | 4:2:2 |
| Total video inputs | 40 |
| Total video outputs | 24 |
| HD video standards | 720p 50, 720p 59.94, 720p 60; 1080i 50, 1080i 59.94, 1080i 60; 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60 |
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60 |
| SD video standards | none |
| Reference input | Tri-Sync or Black Burst |
| Color precision | 10-bit |
| Color space | REC 709, REC 2020 |
| Video input re-sync | on all 40 inputs |
| Total audio inputs | 2 x balanced 1/4" jack, 1 x 32 stereo channel BNC MADI IN, 1 x 5-pin XLR Talkback |
| Total audio outputs | 2 x balanced 1/4" jack, 2 x 32 stereo channel BNC MADI OUT, 1 x 5-pin XLR Talkback |
| Frame rate and format converters | on all 40 inputs |
| Upstream keyers | 16 |
| Downstream keyers | 4 |
| Advanced chroma keyers | 16 |
| Total number of layers | 28 |
| Control panel connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network |
| Linear / luma keyers | 21 |
| Time Code connections | none |
| Extra audio outputs | 1 x 5-pin XLR Talkback |
| SDI program outputs | any of the 24 SDI outputs |
| Down converted SDI program output | none |
| SDI preview outputs | any of the 24 SDI outputs |
| SDI multi view outputs | 4 |
| HDMI multi view outputs | none |
| Remote | RJ12 supports RS-422 |
| Internal Time Code generator | yes |
| Tally output | added via Ethernet connection to Blackmagic Design GPI and Tally interface product (not included) |
| Talkback support | yes |
| SDI aux outputs | any of the 24 SDI outputs |
| Webcam output | 1 x USB-C supporting 720p or 1080p at PGM frame rate |
| Mix minus support | yes |
| Transition keyer (stinger / DVE) | 4 stinger, 4 DVE |
