BLACKMAGIC DESIGN
Alimentatore USB-C 5 V 10 W per Micro Converter - Blackmagic Design…
31,07 €IVA incl.
puntospettacoli.itCaricamento in corso…

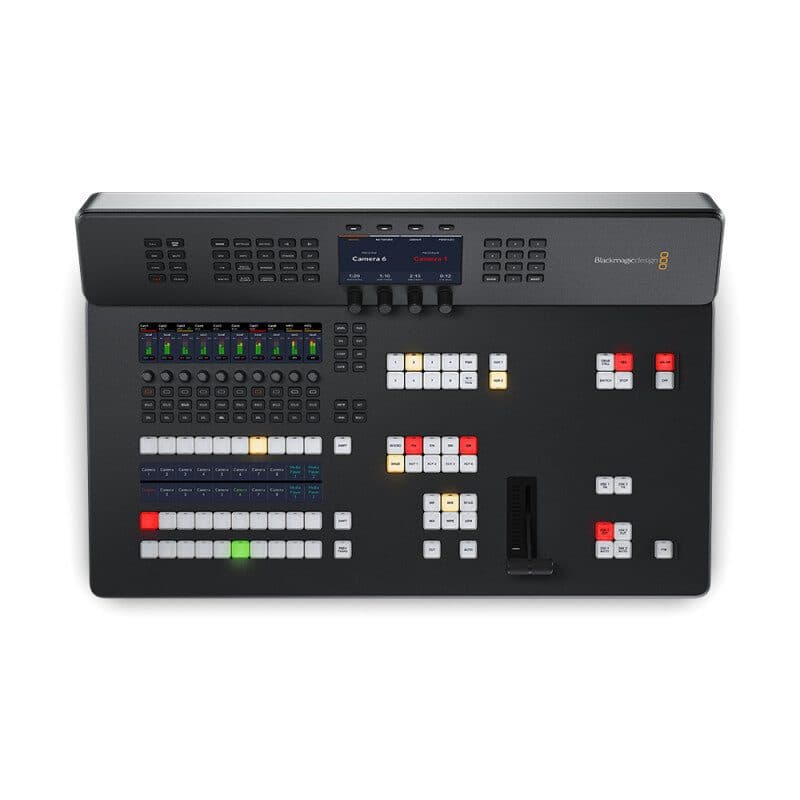

Switcher di produzione live compatto con pannello di controllo broadcast integrato, 8 ingressi 3G-SDI con conversione di standard, streaming integrato, registratore di master, multiview, webcam USB, DVE, quattro ATEM Advanced Chroma Keyer, lettori multimediali, Talkback e switch Ethernet a quattro porte.
2890,32 €IVA inclusa
Switcher di produzione live compatto con pannello di controllo broadcast integrato. Offre 8 ingressi 3G-SDI con conversione di standard, streaming integrato, registratore di master, multiview, webcam USB, DVE, quattro ATEM Advanced Chroma Keyer, lettori multimediali, Talkback, switch Ethernet a quattro porte e archiviazione su cloud opzionale.
| Ethernet | 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T |
|---|---|
| Talkback | RJ45 for 3rd party talkback systems |
| Computer interface | 2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection |
| SDI rates | 1.5G, 3G |
| SDI audio inputs | 4 CH embedded audio on all SDI inputs |
| SDI audio outputs | 2 CH embedded audio on all SDI outputs |
| SDI compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B |
| SDI auto switching | automatically detects between 1.5G-SDI and level A or level B 3G-SDI |
| Video sampling | 4:2:2 |
| SD video standards | none |
| SDI video inputs | 8 |
| SDI video outputs | 12 |
| Reference input | 1 x BNC in, 1 x BNC out. Tri-sync or black burst |
| HDMI video outputs | 1 |
| Color precision | 10-bit. |
| Color space | REC 709 |
| Video input re-sync | on all 8 inputs |
| Total audio inputs | 2 x XLR balanced analog audio, 1 x BNC 32 CH MADI digital audio, 2 x RCA stereo analog audio, 1 x 5-pin XLR Talkback |
| Total audio outputs | 4 x 1/4" jack analog audio, 1 x BNC 64 CH MADI digital audio, up to 50 active, 1 x 5-pin XLR Talkback |
| Frame rate and format converters | on all 8 inputs |
| HD video input standards | 720p 50, 720p 59.94, 720p 60 - 1080i 50, 1080i 59.94, 1080i 60 - 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60 |
| Control panel connection | Ethernet. Direct connection between panel and chassis, or via network |
| Time Code connections | 1 x BNC in, 1 x BNC out |
| SDI program outputs | 1 |
| Remote | RJ12 supports RS-422 |
| Internal Time Code generator | yes |
| Tally output | added via Ethernet connection to Blackmagic Design GPI and Tally interface product (not included) |
| SDI aux outputs | 2 |
| Webcam output | 2 x USB-C supporting 720p or 1080p at PGM frame rate |
| Direct cross points | 10 |
| Shifted Cross Points | 20 |
| Crosspoint button type | tri‑color LED |
| Crosspoint label | 6 rows 24 character LCD |
| Preview transition | 1 |
| Dedicated macro buttons | 10 plus shift 10 |
| Source select bus | 1 |
| Total multiviews | 1 x 3G-SDI, 1 x HDMI |
| Number of mix effects rows | 1 |
| Transition type buttons | 5 |
| Transition rate | set via system LCD menu display |
