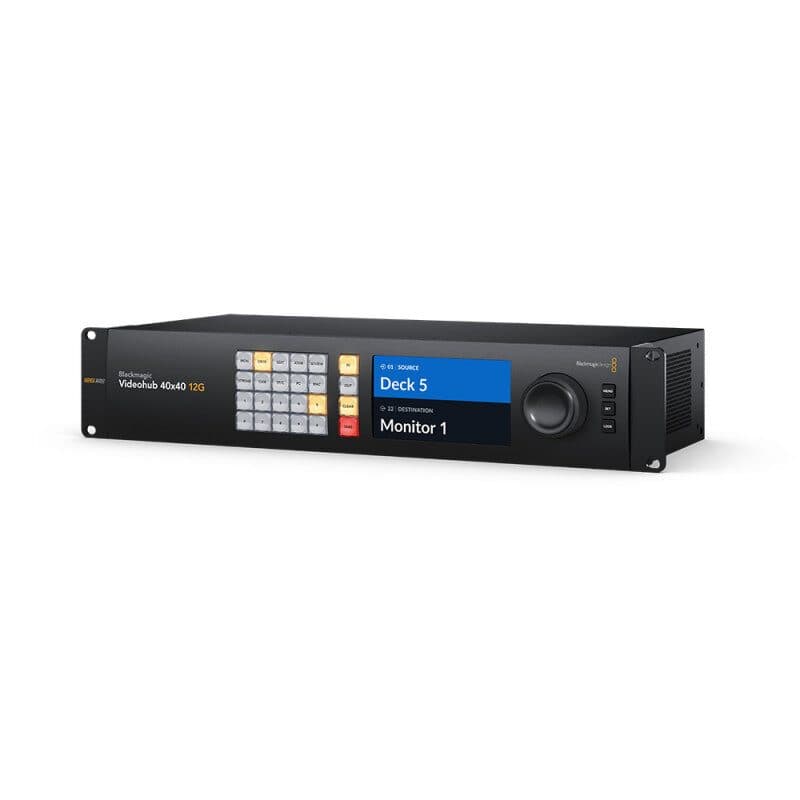

Matrice video 40x40 12G-SDI a zero latenza in 2 unità rack, con 40 ingressi e 40 uscite, alimentazione ridondante e reclocking SDI. Supporta SD, HD e Ultra HD fino al 2160p60, con LCD frontale Full HD per anteprima video e routing.
4283,42 €IVA inclusa

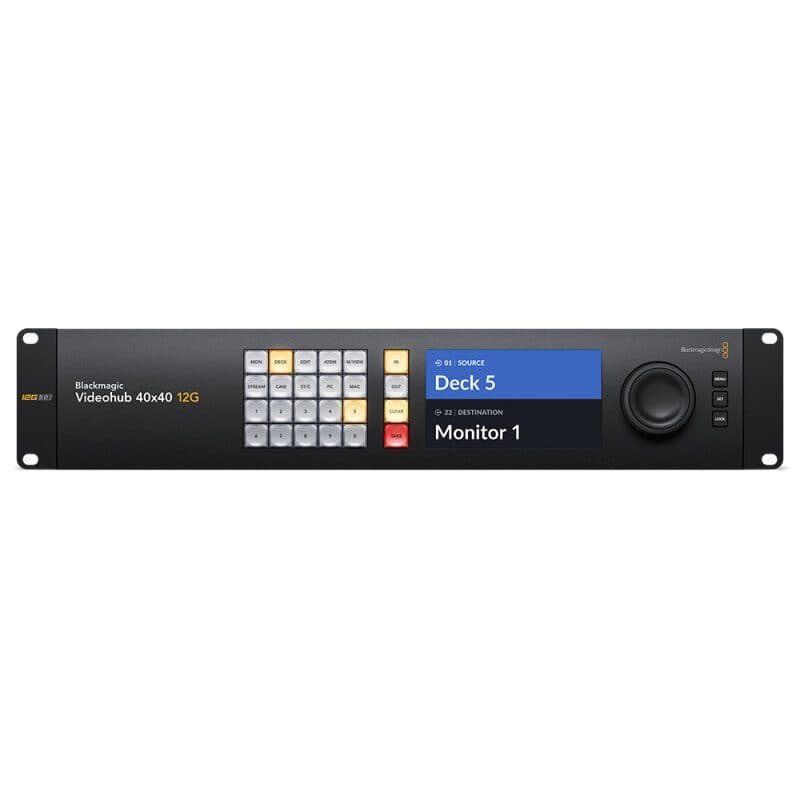

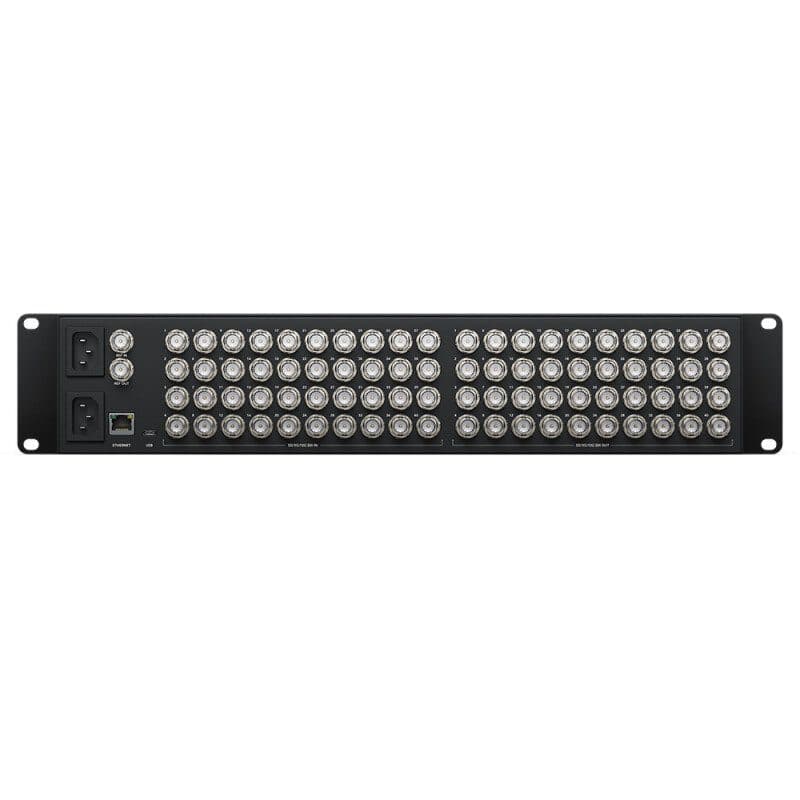

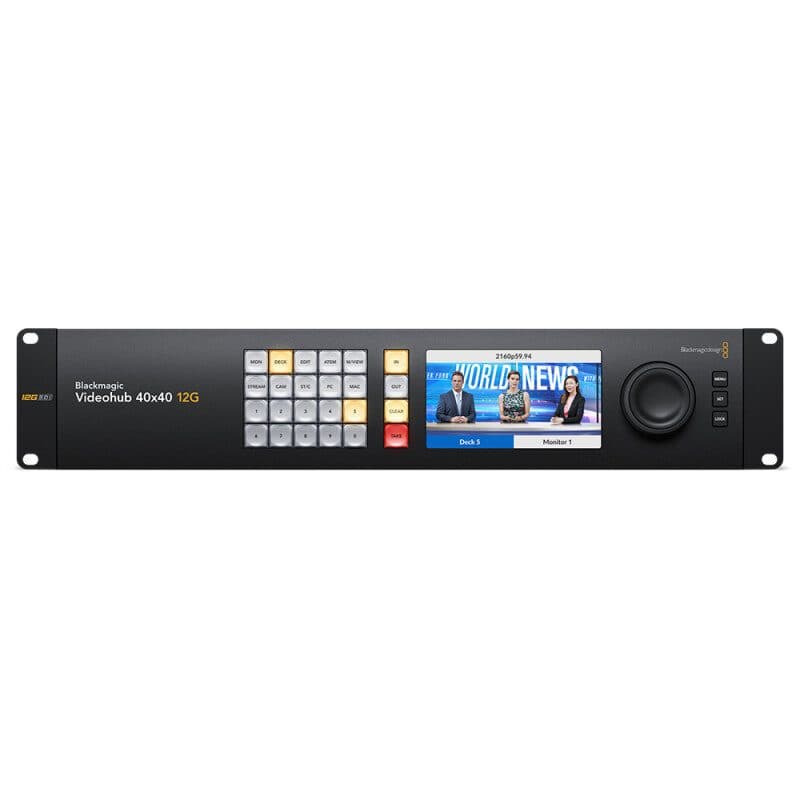

Potente matrice video 40 x 40 12G-SDI a zero latenza, compatibile con qualsiasi combinazione di SD, HD e Ultra HD contemporaneamente. Offre reclocking SDI, controllo esterno tramite Ethernet e supporta tutti gli standard video SDI fino al 2160p 60. Dispone di 40 ingressi e 40 uscite 12G-SDI, alimentazione ridondante e connessioni di riferimento racchiusi in un due unità rack. Il grande pannello LCD frontale Full HD consente di vedere il video prima di instradarlo e mostra chiaramente le etichette e gli standard video. Le operazioni di routing si gestiscono direttamente dai pulsanti di selezione e tramite la grande manopola di controllo con frizione.
| Ethernet | supports 10/100/1000 BASE‑T |
|---|---|
| Weight | 5.6 kg |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -20 to 60 °C |
| Dimensions | 48.2 x 8.8 x 23.8 cm |
| Power supply | 2 x internal 100 - 240 V AC 50/60 Hz, IEC power cables required |
| Computer interface | USB‑C |
| Relative humidity | 0 to 90 % non‑condensing |
| Built in control panel | 24 buttons for local control of Videohub with 3 buttons and search dial for menu control, 5" color display |
| SDI rates | DVB-ASI, 270 Mb, 1.5G, 3G, 6G, 12G |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI auto switching | automatically selects between 270MB SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard |
| Internal software upgrade | via included updater application |
| Power usage | 46.5 W max |
| Reference inputs | tri-sync or black burst |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
| HD video standards | 720p 50, 720p 59.94, 720p 60 - 1080i 50, 1080i 59.94, 1080i 60 - 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60 - 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30 |
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p47.95, 2160p48, 2160p 50, 2160p 59.94, 2160p 60 |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI video inputs | 40 |
| SDI video outputs | 40 |
| Video input re-sync | none |
| Software control | router control included free for Windows and Mac |
| Control panel connection | Ethernet |
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI |
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI |
| External control panel | includes Blackmagic Videohub software control panel for Mac and Windows, supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels, includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol |
| Power fail protection | crosspoint connections preserved and restored instantly at power on |
| SDI reclocking | on all SDI outputs |
| SDI video sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI color precision | 10‑bit and 12‑bit RGB 4:4:4 in all HD and 2K modes, ULTRA HD modes up to 2160p 30 and 4K modes up to 4KP 30 DCI, 10‑bit YUV 4:2:2 in all modes |
| SDI color space | REC 601, REC 709, REC 2020 |
| SDI metadata support | video payload identification ancillary data as per SMPTE 352M |
| Displays | built in 5" LCD for video and menu settings |
| Reference outputs | reference terminating loop output |
