Converte segnali da HDMI a 12G-SDI, supportando formati SD, HD, 6G e 12G-SDI. Up-converter da HD a Ultra HD incluso, incorporazione audio da analogico bilanciato o AES/EBU e ingresso Time Code.
664,24 €IVA inclusa
Teranex Mini HDMI to SDI 12G permette di effettuare una conversione da HDMI a 12G-SDI. Tutti i formati video sono supportati, compresi SD, HD, 6G e 12G-SDI. Puoi anche convertire da HD a Ultra HD con l'up-converter incluso. Il Teranex Mini permette l'incorporazione dell'audio da formati analogici bilanciati o AES/EBU e l'ingresso Time Code. Teranex Mini HDMI to SDI 12G è la soluzione perfetta per convertire telecamere consumer HDMI in SDI, o per aggiungere uscite SDI a computer con connessioni HDMI.
| Reclocking | yes |
|---|---|
| PoE | can be powered via 48 V DC using PoE+ (Power over Ethernet) |
| Weight | 580 g |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -20 to 60 °C |

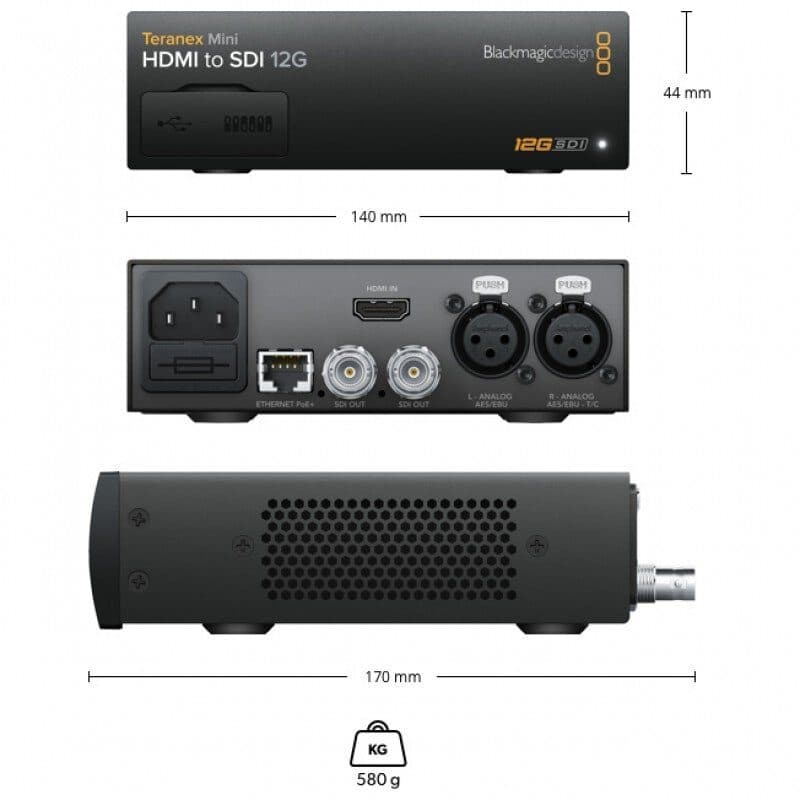

| Dimensions | 14 x 4.4 x 17 cm |
| Power consumption | 16 W |
| Power supply | 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input |
| Relative humidity | 0 to 90% non-condensing |
| Multi rate support | automatic switching between SD / HD / 2K and 4K |
| Analog audio inputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code input |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 |
| Internal software upgrade | via included updater application |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60 |
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60 |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI video outputs | 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input |
| HDMI video inputs | 1 x HDMI 2.0 type A |
| Software control | Mac OS X and Windows software upgrade via USB-C or Ethernet |
| Updates and configuration | front USB-C or Ethernet |
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI |
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI |
| SDI video sampling | 4:2:2 |
| SDI color precision | 4:2:2 |
| SDI color space | YUV |
| SDI video rates | SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI |
| HDMI color precision | YUV 4:2:2 in HD, 2K and 4K |
| HDMI color space | REC 601, REC 709 |
| Operational voltage range | 100 to 240 V AC |
| Digital audio inputs | 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code input |
| Copy protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
| Embedded audio support | 16 channels |
| Basic Settings control | mini switches, USB and Ethernet via free software utility |
| Optional front panel control | front mounted Smart Panel with LCD, rotary knob and six settings buttons |
