Separa l'audio da segnali SDI fino al 12G con uscite bilanciate, RCA Hi-Fi, AES/EBU e S/PDIF ottica. Supporta video da SD a Ultra HD, audio 24 bit/48 kHz e aggiornamento via USB o Ethernet.
640,30 €IVA inclusa

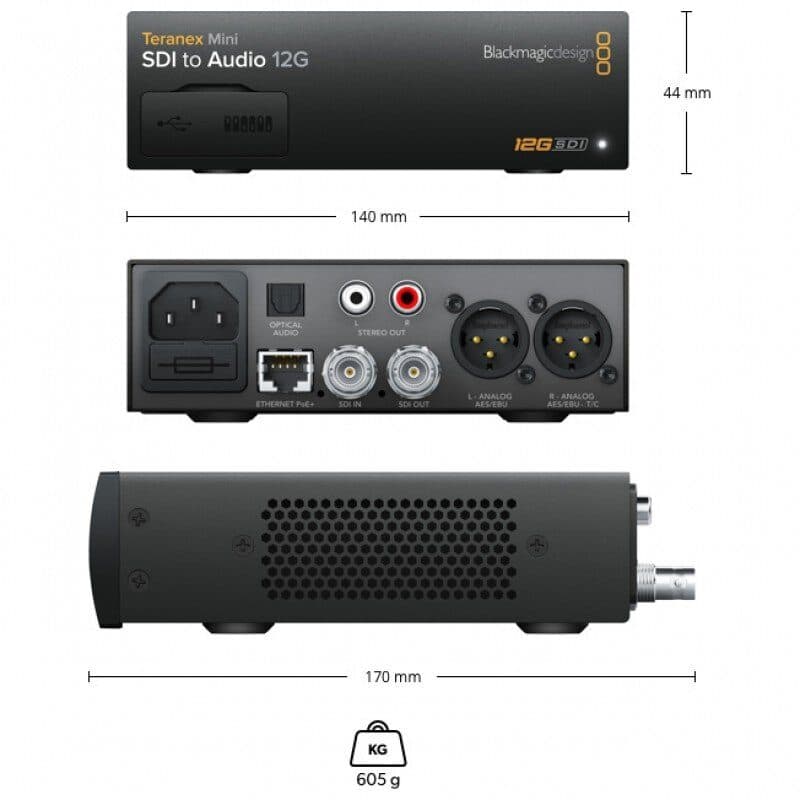

Teranex Mini SDI to Audio 12G è un convertitore che separa l’audio da qualsiasi segnale SDI fino al 12G, offrendo uscite analogiche bilanciate, RCA Hi-Fi e digitali AES/EBU, oltre a un’uscita ottica S/PDIF. Robusto e affidabile, supporta tutti gli standard video da SD a Ultra HD, è aggiornabile via USB o Ethernet e può essere gestito con il pannello opzionale Smart Panel. Grazie al supporto per campionamenti audio a 24 bit / 48 kHz e video fino a 4:4:4, assicura una qualità broadcast.
| Reclocking | yes |
|---|---|
| PoE | can be powered via 48 V DC using PoE+ (Power over Ethernet) |
| Weight | 605 g |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -20 to 60 °C |
| Dimensions | 14 x 4.4 x 17 cm |
| Power consumption | 16 W |
| Power supply | 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input |
| Relative humidity | 0 to 90% non-condensing |
| Multi rate support | automatic switching between SD / HD / 2K and 4K |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 |
| Internal software upgrade | via included updater application |
| Analog audio outputs | 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30 |
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60 |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI video inputs | 1 x 12G-SDI SD / HD / 2K / 4K auto switching |
| SDI video outputs | 1 x 12G-SDI loop output |
| Software control | Mac and Windows software upgrade via USB-C and Ethernet |
| Updates and configuration | front USB-C or Ethernet |
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI |
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI |
| SDI video sampling | 4:2:2 and 4:4:4 |
| SDI color precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K |
| SDI color space | REC 601, REC 709 |
| SDI video rates | SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI |
| Operational voltage range | 100 to 240 V AC |
| Analog video outputs | composite, Y/C or component |
| Digital audio outputs | 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code output |
| Embedded audio support | 16 channels |
| Basic Settings control | mini switches, USB and Ethernet via free software utility |
| Optional front panel control | front mounted Smart Panel with LCD, rotary knob and six settings buttons |
