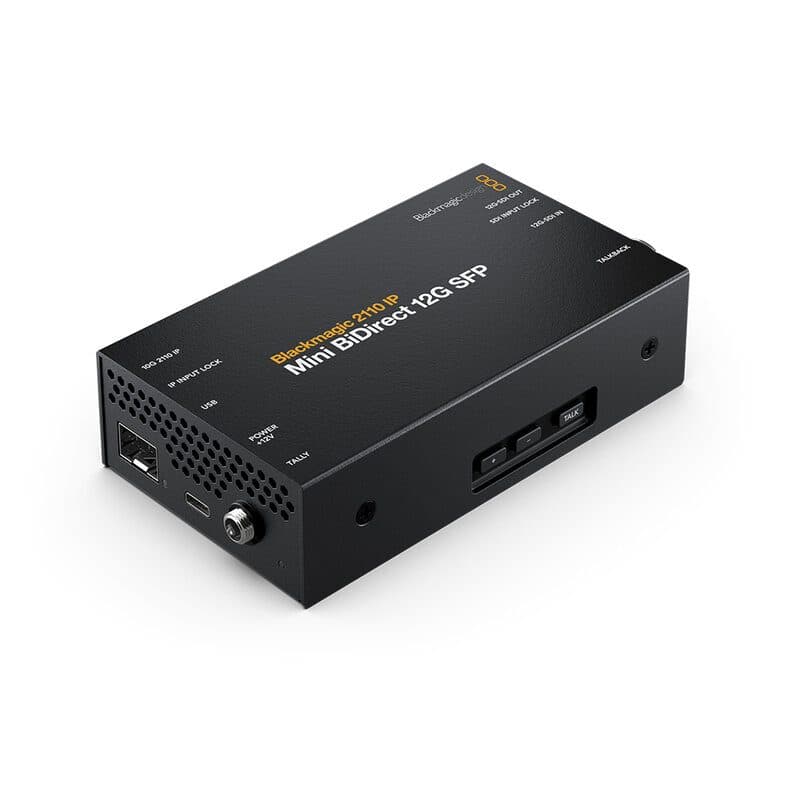

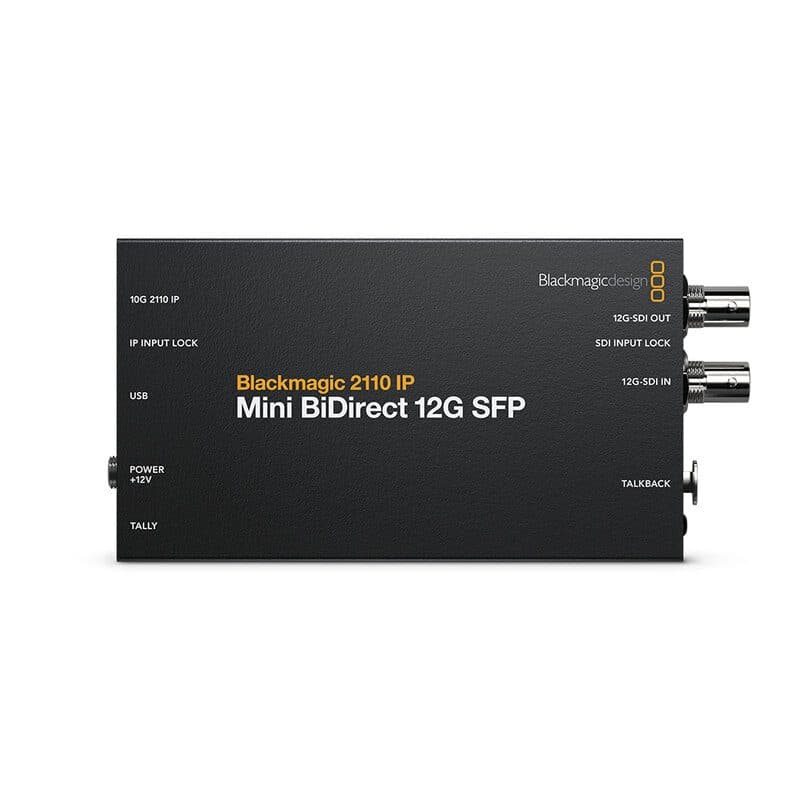

Convertitore bidirezionale 12G-SDI verso IP SMPTE-2110 su fibra con porta SFP per moduli 10G Ethernet, 3G-SDI, 6G-SDI o 12G-SDI. Video fino a 2160p60, cuffie XLR 5 pin per talkback; alimentatore DC incluso.
496,68 €IVA inclusa
Convertitore bidirezionale 12G-SDI progettato per convertire i segnali provenienti dalle telecamere broadcast SDI in IP SMPTE-2110 su lunghe distanze sfruttando la fibra ottica e di gestire i segnali della camera SDI e il ritorno del program SDI con un unico dispositivo! La porta SFP accetta moduli ottici 10G Ethernet, 3G-SDI, 6G-SDI o 12G-SDI. La sua connessione 12G-SDI supporta gli standard SD, HD e Ultra HD fino a 2160p 60. Dispone anche di una connessione per cuffie XLR a 5 pin per il talkback consentendo la comunicazione bidirezionale tra il regista e il personale sul set, con controllo del volume e pulsante "Push to talk". Alimentatore DC incluso.
| Reclocking | yes |
|---|---|
| NMOS BCP-002-01 | natural grouping |
| NMOS BCP-004-01 | receiver capabilities |

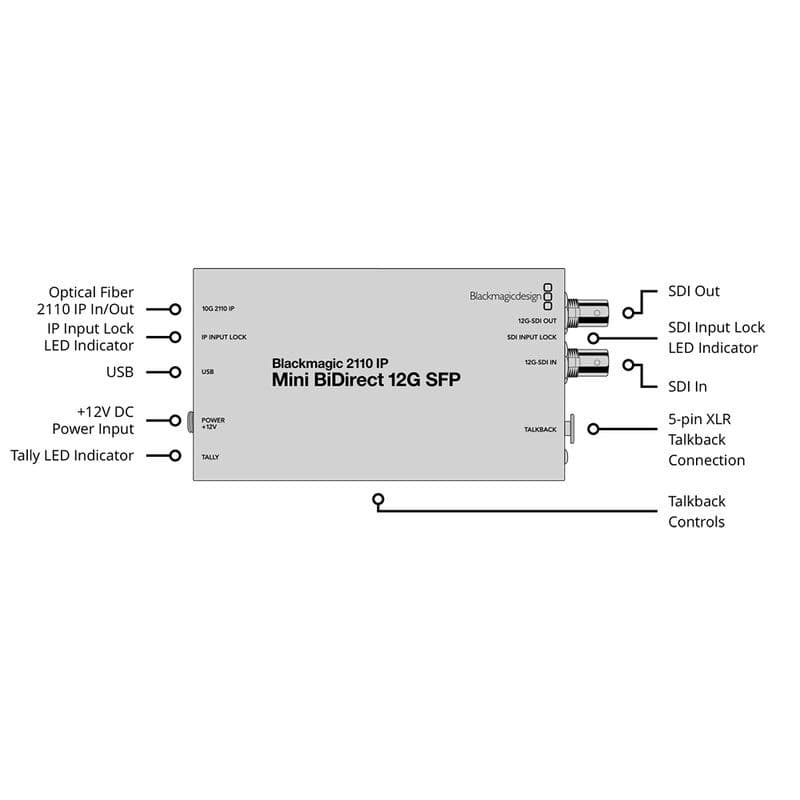

| Ethernet | 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates |
| SMPTE 2110-30 (PCM) | audio conformance Level C |
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video |
| Talkback | 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video |
| PTP (Precision Time Protocol) | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2 |
| Operating temperature | 5 to 40 °C |
| Storage temperature | -20 to 45 °C |
| Power supply | 1 x +12 V DC external universal power supply with locking 5.5 mm barrel jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies |
| Computer interface | 1 x USB-C 3.0 for configuration and firmware updates |
| NMOS IS-04 discovery and registration | v1.3.2, peer-to-peer via MDNS/DNS-SD |
| NMOS IS-05 connection management | v1.1.2 |
| SDI rates | 270 Mb, 1.5G, 3G, 6G, 12G |
| Multi rate support | auto detection of SD, HD, 2K, Ultra HD and 4K |
| Analog audio inputs | 1 x 5-pin XLR talkback |
| SDI audio inputs | 16 CH embedded audio on SDI input |
| SDI audio outputs | 16 CH embedded audio on SDI loop output |
| SDI auto switching | automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output |
| SMPTE 2110-20 (uncompressed video) | IGMP v2 |
| SMPTE 2110-21 (traffic shaping) | Sender: narrow |
| SMPTE 2110-40 (ancillary data) | full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata |
| Power usage | 18 W |
| Analog audio outputs | 1 x 5-pin XLR talkback |
| Live tally indicator | Tally LED indicator light |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080 PsF30 |
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60 |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI video input | 1 |
| SDI video output | 1 |
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI |
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI |
| Receiver | narrow, wide synchronous, asynchronous |
| SDI color precision | 4:2:2 |
| SDI color space | YUV |
| SDI video rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI |
| Operational voltage range | 12 - 16 V DC |
| SMPTE ST 2110 IP audio inputs | 16 CH embedded audio on ST-2110 IP video via 10 G Ethernet |
| SMPTE ST 2110 IP audio outputs | 16 CH embedded audio on ST-2110 IP video via 10 G Ethernet |
